Flynn jacket : Remove box pleat

REMOVE BOX PLEAT.jpg

Welcome back to the pattern adjustment series for the Flynn jacket!

I thought some of you might be interested in how to remove the box pleat from the Flynn jacket View A (sleeve version), and have it have a flat back like View B (sleeveless version). This is a really quick alteration to make and won’t take you longer than a couple of minutes.

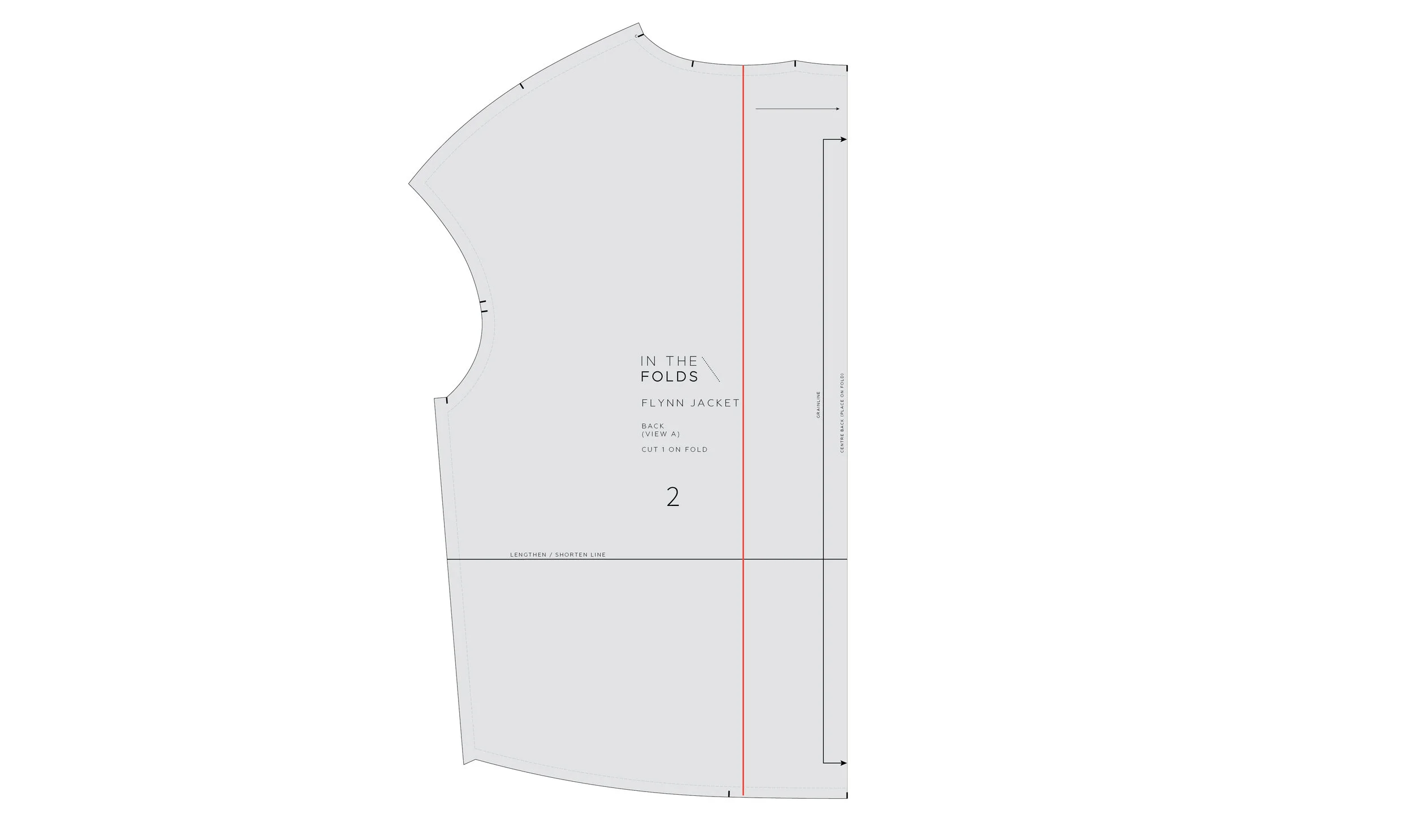

Step 1

FLYNN - remove pleat-01.jpg

Take the BACK [2] and mark a vertical line down through the pattern - starting at the notch on the neckline that indicates the pleat stitch line - and drawing to the bottom of the pattern piece (through the drill hole marking). Be sure to keep the line parallel to the centre back.

Step 2

FLYNN - remove pleat-02.jpg

A - Cut along the line marked in STEP 1 to remove the pleat.

B - You will now be able to use the BACK HEM FACING [10] from View B. All you need to do is transfer the notch on to the top edge of the BACK HEM FACING [10] to the bottom edge of the BACK [2]. For more details on transferring notches - check out this post.

You will need to cut both the BACK [2] piece and the BACK HEM FACING [10] piece on the fold.


I hope you have enjoyed these posts! If there is a tutorial that would like to see, that wasn’t in the series, please leave me a comment or send me an email.
